28V Simultaneous charge


Up to 2 installable batteries


Retractable Foot design


On/Off switchable fan


DC-UPS - Uninterrupted AUX power

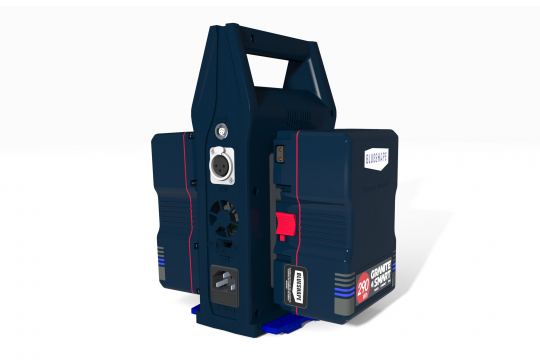

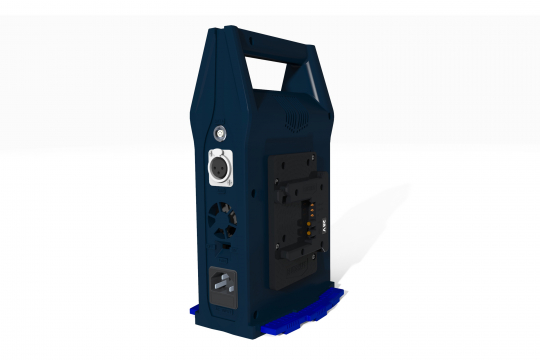

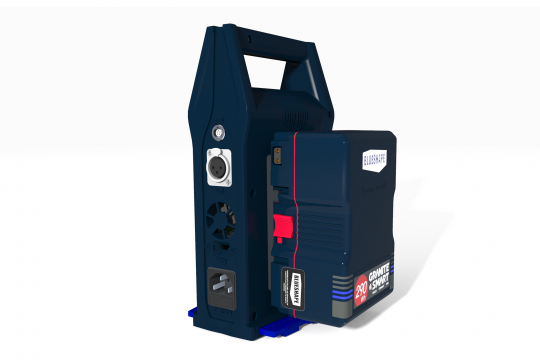

CBTR2P is the professional charger for the High-Voltage B-Mount batteries.

  • Input: AC 100-240V 47-63Hz
  • Output:
  • 2x DC 33.6V 3.0A 100W max, simultaneous
  • 1x AUX DC nominal 28V 7A 150W max.
  • Simultaneous charge: all the 2 batteries are charged in parallel for maximum performance
  • Adaptive charge current: fast with large batteries, gentle with smaller
  • Universal charger: can charge any brand of B-Mount batteries enabled to charge as 28V batteries
  • ON-OFF switchable fan for quiet operation
  • DC-UPS: AUX output always available even during charge. Without AC connected, the installed batteries provide power to the AUX output in sequence
  • Data socket for charger monitoring and diagnostic
  • Retractable Foot design, great stability, minimum size
  • Size: 260 x 150 x 85mm (10.24" x 5.91" x 3.35")
  • Weight: 1.25Kg (2.75lbs)

Charging performance:

  • BB145 145Wh: 2h 30m
  • BB290 290Wh: 3h 15m
  • BB435 435Wh: 5h
