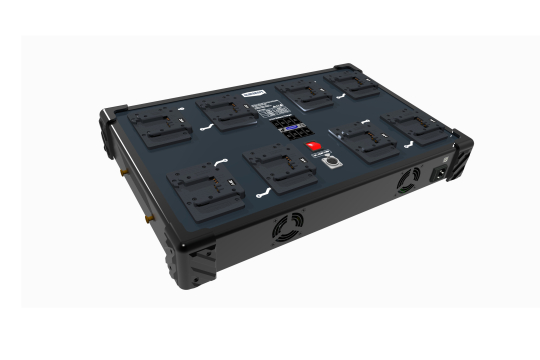

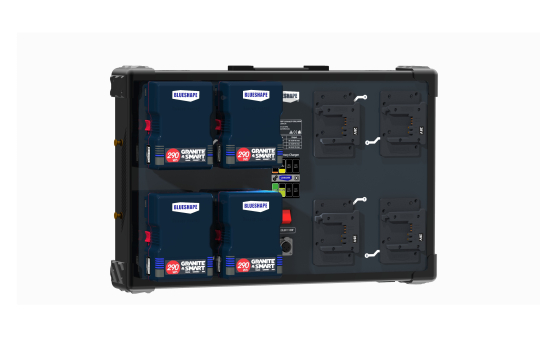

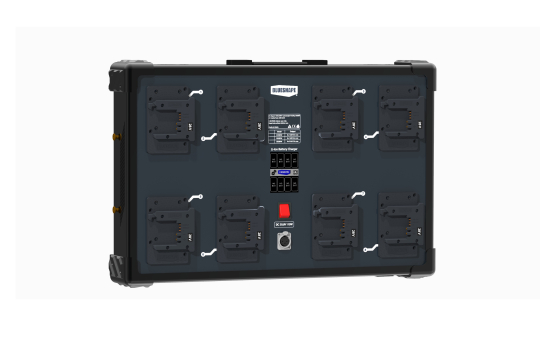

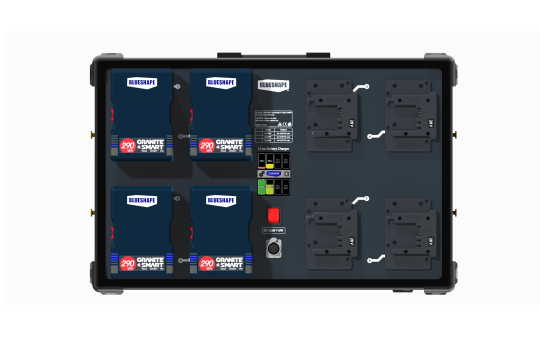

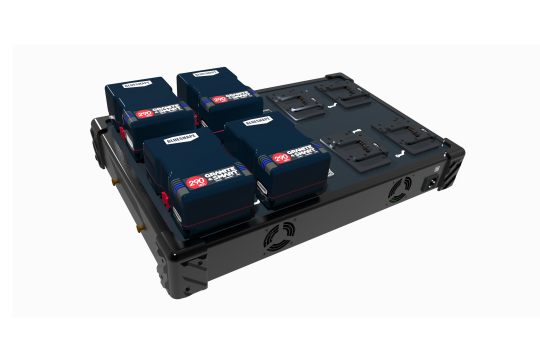

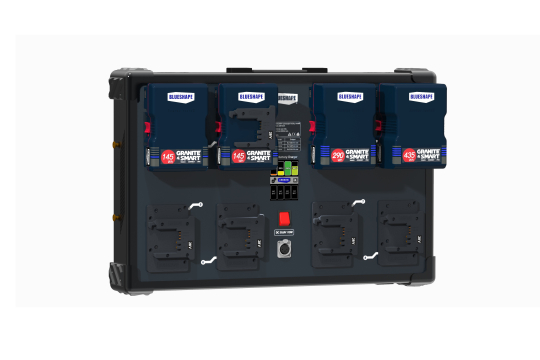

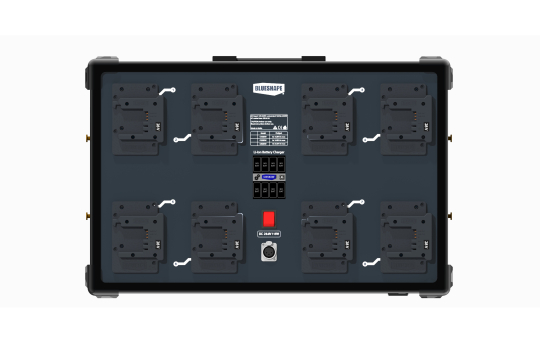

CBS8XW
Home
Battery Chargers
B-Mount chargers
28V Simultaneous charge
Up to 8 installable batteries
On/Off switchable fan
3.5" Touch Display
Wall mounting
Specifications
Input: AC 100-240V 47-63Hz
Output:
8x DC 33.6V 3A 100W/channel
1x AUX DC 28V (nominal) 110W max.
Simultaneous charge: all the 8 batteries are charged in parallel for maximum performance
Adaptive charge current: fast with large batteries, gentle with smaller
Universal charger: can charge any brand of 28V B-Mount batteries
ON-OFF switchable fan for quiet operation
3.5" Large LCD touch screen for intuitive and detailed battery monitoring and diagnostic
Data socket
Provided with a bracket for easier wall installation either inside or in a production vehicle
Size: 620 x 410 x 110 mm (24.40" x 16.14" x 4.33")
Weight: 9.7Kg (21.44lbs)
Charging performance:
BB145
145Wh: 2h 30m
BB290
290Wh: 3h 15m
BB435
435Wh: 5h
Downloads
Operating Manuals
CBS8XW
(2,065.86 Kb)
CBS8XW operating manual
