MBM

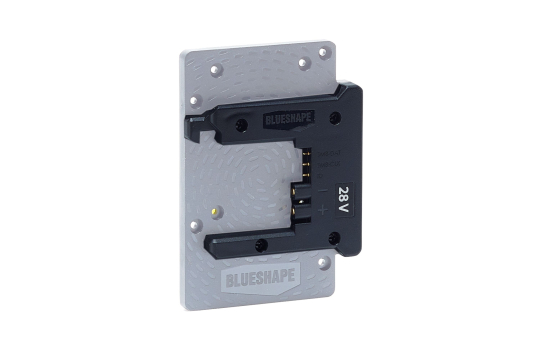

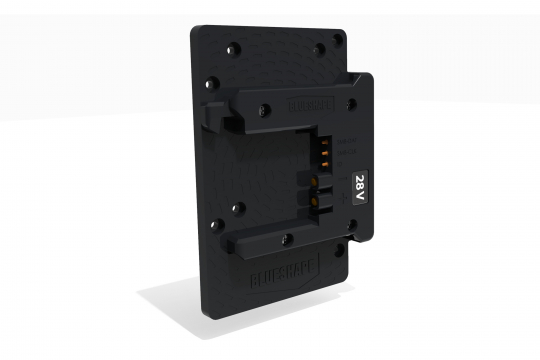

B-Mount Battery plate for 28V High-Voltage batteries.

• Standard fitting with a variety of mounting patterns
• Light but robust construction
• High-Rate and low resistivity battery terminals for increased current rating
• Tested with discharge current over 20A even under continuous vibration
• Size: 119 x 87 x 14mm (4.69" x 3.42" x 0.55")
• Weight: 0.1Kg (0.22lbs)

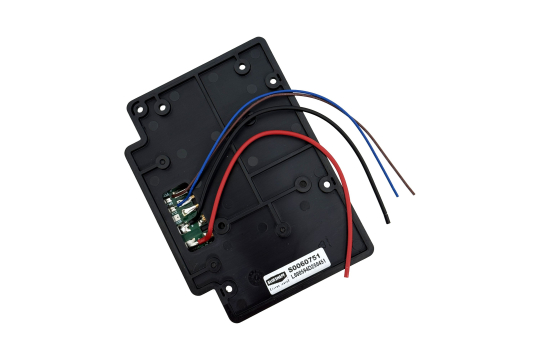

The unit is supplied with 150mm cables for power and data, but these can be easily interchanged as they are mounted on a PCB.

The male part, which locks the battery, can be removed and installed separately using 4 screws.
