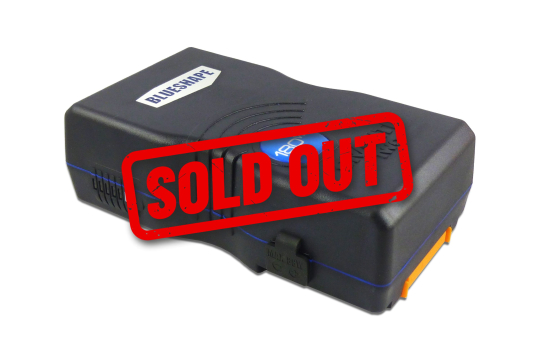

BV180two

BV180two

GRANITE Shock-Proof Construction

BV180two

GRANITE LINK Wi-Fi connectivity

BV180two

IP54 Rainproof

BV180two

App control

BV180two

Long-lasting battery

Specifications

GRANITE LINK, Wi-Fi enabled remote control
2 Auxiliary D-Taps (nominal 14.8V) provide max 5A with independent overload protection. Left hand side D-Tap with independent overload protection. Right hand side D-Tap is direct and can be used as a charging inlet
GRANITE construction, robust, shockproof and IP54 certified
Enhanced contact protection for safer air transport
Nominal Voltage: 14.8V
Voltage range: 10.8V ~ 16.8V
Nominal Capacity: 12.0Ah, 180Wh
Max. discharge current: 9A
Medium size and lightweight
Size: 171 x 95 x 53mm (6.73" x 3.74" x 2.08")
Weight: 1.19Kg (2.62lbs)

Downloads

Operating Manuals

GRANITE TWO series (1,904.16 Kb)

GRANITE TWO V-Lock series operator manual

Certificate

CE DOC (307.99 Kb)

CE Declaration of Conformity for GRANITE TWO and GRANITE MINI batteries

MSDS (221.48 Kb)

Material Safety Data Sheet for all BLUESHAPE batteries v1.9

UN38.3 BV180 (686.54 Kb)

UN38.3 IATA Transport declaration for BV180

IP54 BV180 (614.78 Kb)

Ingress Protection certificate for BV180 against dust and water

Application Notes

IATA Li-Ion Air Transport guide (121.94 Kb)

2014 update of the IATA air transport regulations for rechargeable lithium ion, with a dedicated focus on BLUESHAPE batteries range
