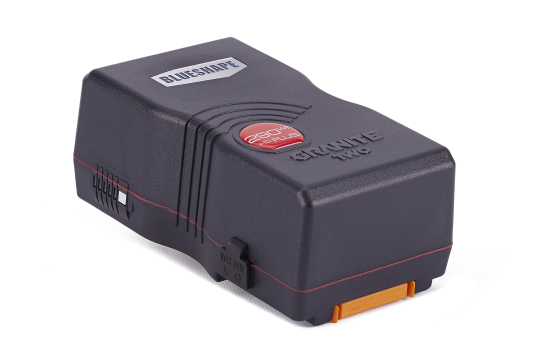

BV290HDplus

BV290HDplus

GRANITE Shock-Proof Construction

BV290HDplus

GRANITE LINK Wi-Fi connectivity

BV290HDplus

IP54 Rainproof

BV290HDplus

App control

BV290HDplus

Long-lasting battery

BV290HDplus

20A Max Draw

Price:

€ 649,00 excl. VAT (€ 791,78 incl. VAT)

Please enter the destination country to check if we can ship this product

Specifications

GRANITE LINK, Wi-Fi enabled remote control
2 Auxiliary D-Taps (nominal 14.4V) provide max 5A with independent overload protection. Left hand side D-Tap with independent overload protection. Right hand side D-Tap is direct and can be used as a charging inlet
GRANITE construction, robust, shockproof and IP54 certified
Enhanced contact protection for safer air transport
Nominal Voltage: 14.4V
Voltage range: 10.0V ~ 16.8V
Nominal Capacity: 20.2Ah, 290Wh
Max. discharge current: 20A
Size: 171 x 95 x 69mm (6.73" x 3.74" x 2.71")
Weight: 1.62Kg (3.57lbs)

Downloads

Operating Manuals

GRANITE TWO series (1,904.16 Kb)

GRANITE TWO V-Lock series operator manual

GRANITE TWO HDplus additional info (215.30 Kb)

GRANITE TWO HDplus series operator manual addendum

Certificate

CE DOC (307.99 Kb)

CE Declaration of Conformity for GRANITE TWO and GRANITE MINI batteries

MSDS (221.48 Kb)

Material Safety Data Sheet for all BLUESHAPE batteries v1.9

UN38.3 BV270HD (686.94 Kb)

UN38.3 IATA Transport declaration for BV270HD

IP54 BV270HD (615.53 Kb)

Ingress Protection certificate for BV270HD against dust and water

Application Notes

IATA Li-Ion Air Transport guide (121.94 Kb)

2014 update of the IATA air transport regulations for rechargeable lithium ion, with a dedicated focus on BLUESHAPE batteries range
