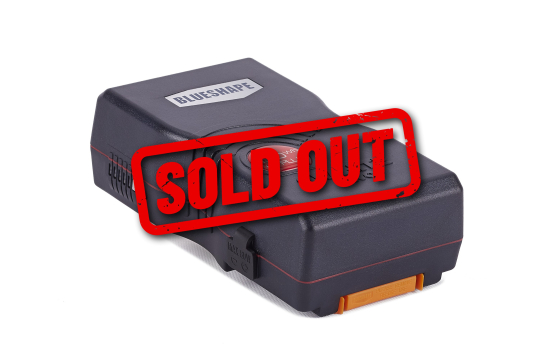

BV190HDplus

Home  V-LOCK BATTERIES   GRANITE HDplus
BV190HDplus

GRANITE Shock-Proof Construction

BV190HDplus

GRANITE LINK Wi-Fi connectivity

BV190HDplus

IP54 Rainproof

BV190HDplus

App control

BV190HDplus

Long-lasting battery

BV190HDplus

20A Max Draw

Specifications

  • GRANITE LINK, Wi-Fi enabled remote control
  • 2 Auxiliary D-Taps (nominal 14.4V) provide max 5A with independent overload protection. Left hand side D-Tap with independent overload protection. Right hand side D-Tap is direct and can be used as a charging inlet
  • GRANITE construction, robust, shockproof and IP54 certified
  • Enhanced contact protection for safer air transport
  • Nominal Voltage: 14.4V
  • Voltage range: 10.0V ~ 16.8V
  • Nominal Capacity: 13.4Ah, 193Wh
  • Max. discharge current: 20A
  • Medium size and lightweight
  • Size: 171 x 95 x 53mm (6.73" x 3.74" x 2.08")
  • Weight: 1.19Kg (2.62lbs)

Downloads

Operating Manuals

GRANITE TWO V-Lock series operator manual

GRANITE TWO HDplus series operator manual addendum

Certificate

Material Safety Data Sheet for all BLUESHAPE batteries v1.9

CE Declaration of Conformity for GRANITE TWO and GRANITE MINI batteries

UN38.3 IATA Transport declaration for BV190HD

Ingress Protection certificate for BV190HD against dust and water

Application Notes

2014 update of the IATA air transport regulations for rechargeable lithium ion, with a dedicated focus on BLUESHAPE batteries range
