CVS8XW

Home  Battery Chargers   V-Lock - Multiple battery chargers


CVS8XW

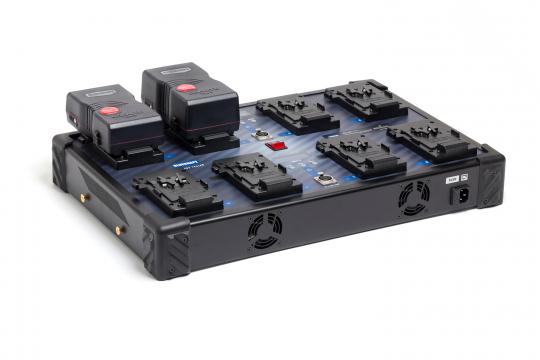

Simultaneous charge

CVS8XW

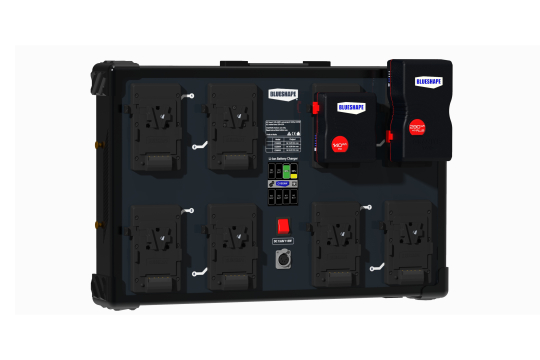

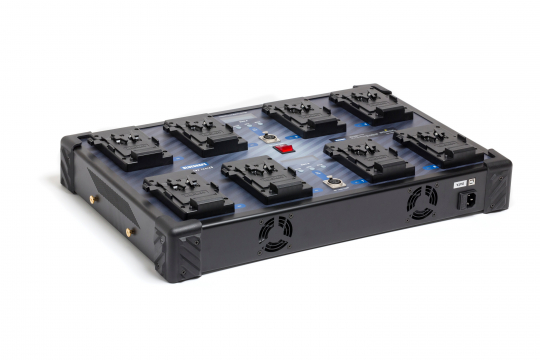

Up to 8 installable batteries

CVS8XW

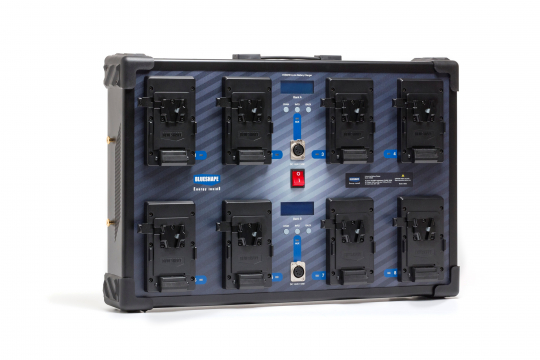

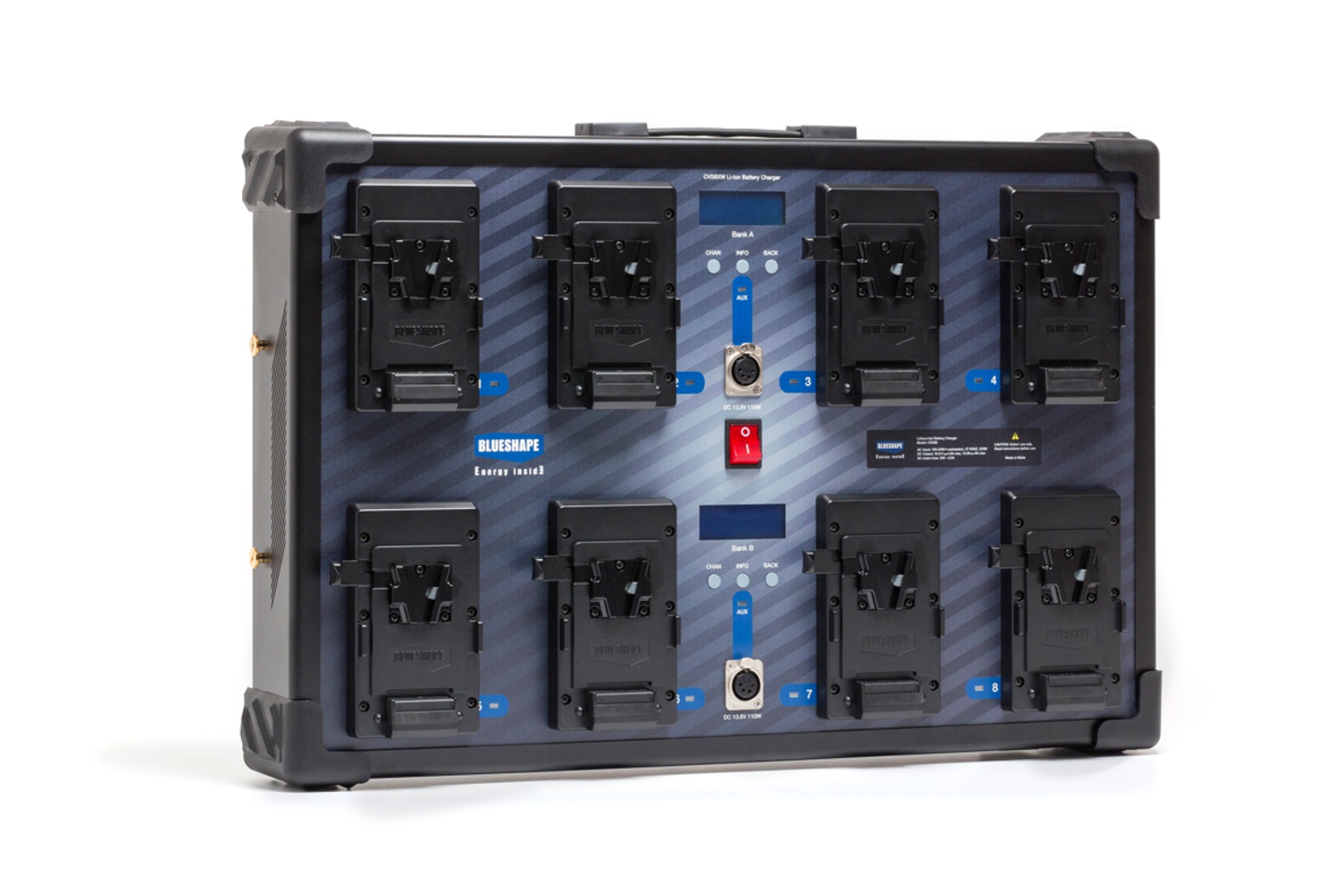

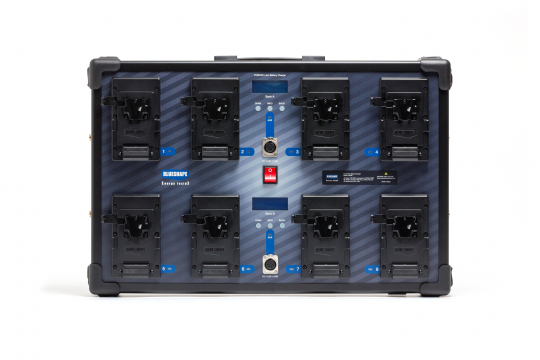

Double LCD monitoring

CVS8XW

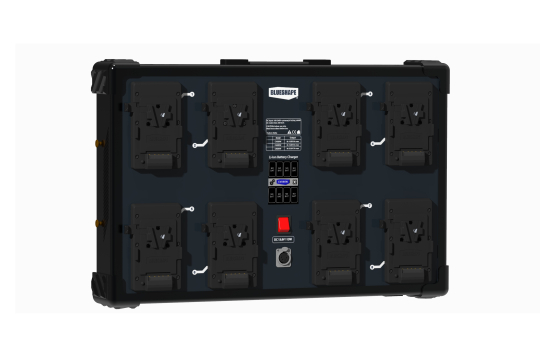

Wall mounting

Specifications

  • Input: AC 100-240V 47-63Hz
  • Output:
  • 8x DC 16.8V 4.8A
  • 2x AUX DC 13.8V 110W max.
  • Charging current:
  • 4.8A per channel when 4 batteries are charging (one battery every two slots)
  • 3.0A per channel when more than 4 batteries are charging
  • Universal charger: can charge any brand of V-Lock batteries
  • Double LCD display to show battery digital information in real time like state of charge, charge time to full and status information
  • Data socket

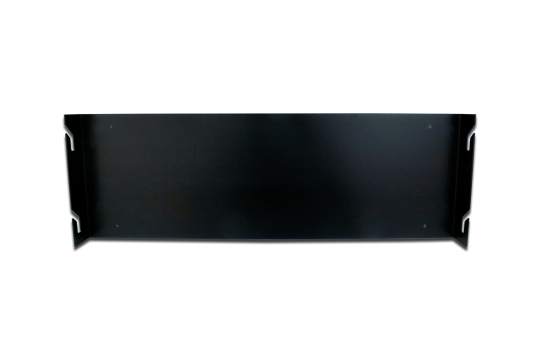

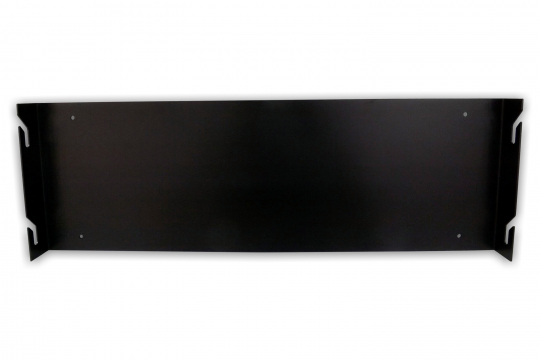

  • Provided with a bracket for easier wall installation either inside or in a production vehicle
  • Size: 620 x 410 x 110 mm (24.40" x 16.14" x 4.33")
  • Weight: 9.7Kg (21.44lbs)

Downloads

Operating Manuals

CVS8XW series operator manual

Certificate

CE Declaration of conformity for CxS8XW

Application Notes

All BLUESHAPE chargers implement unique features such as IPCS (Intelligent Pre-Charge System) and CTP (Charge Thermal Protection) for improved battery and charger protection
