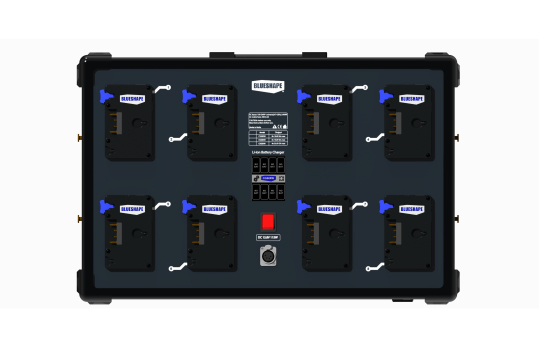

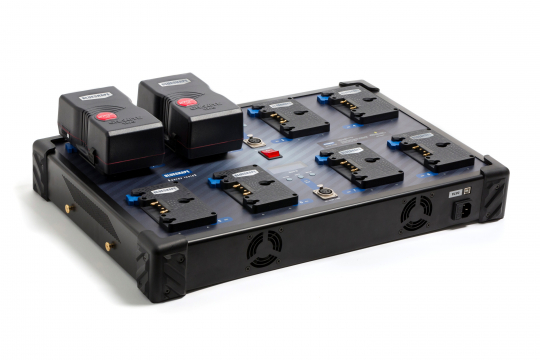

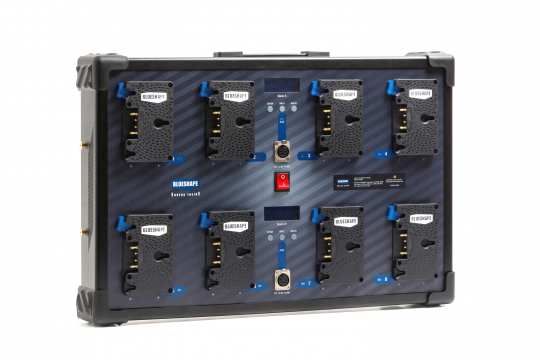

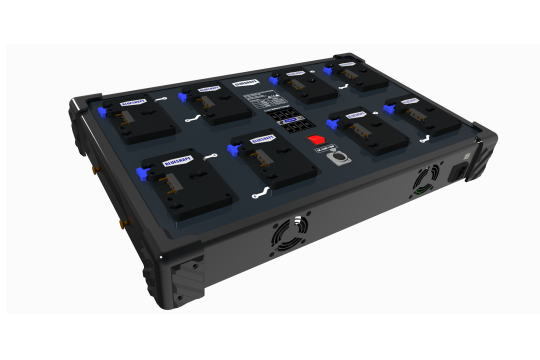

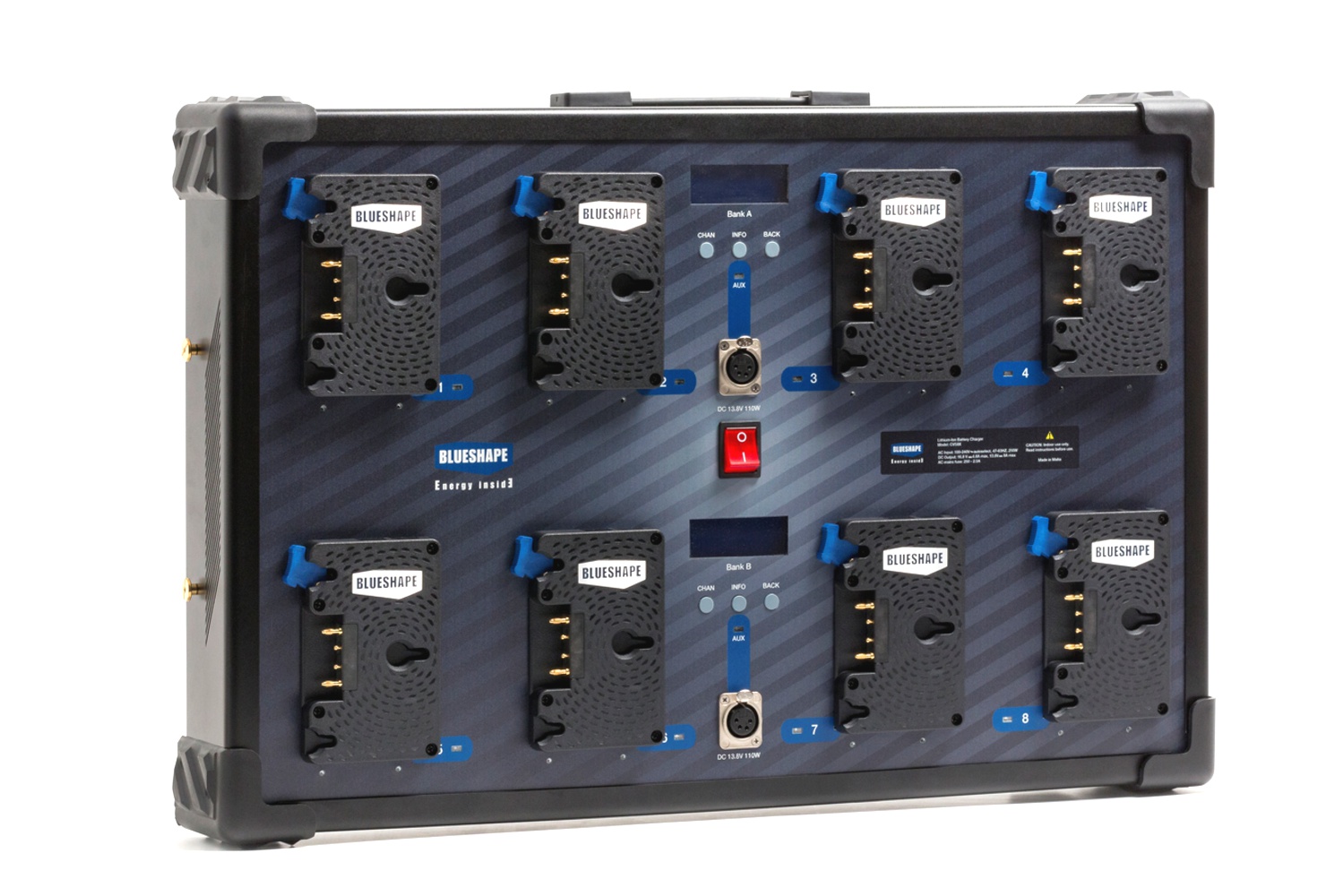

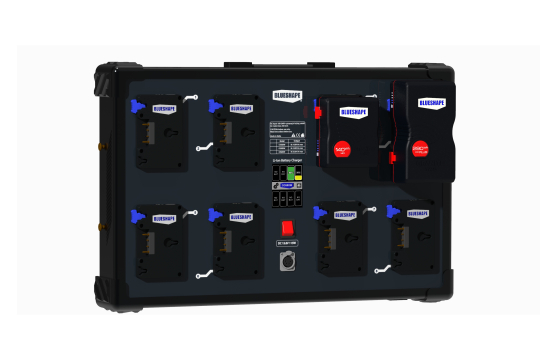

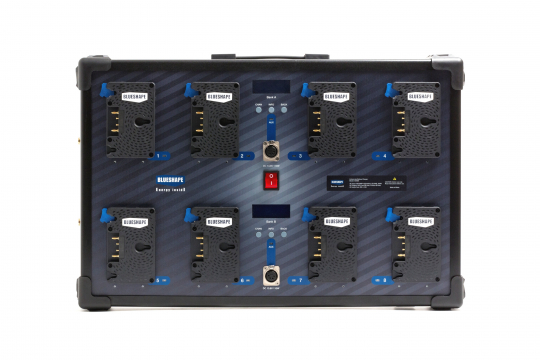

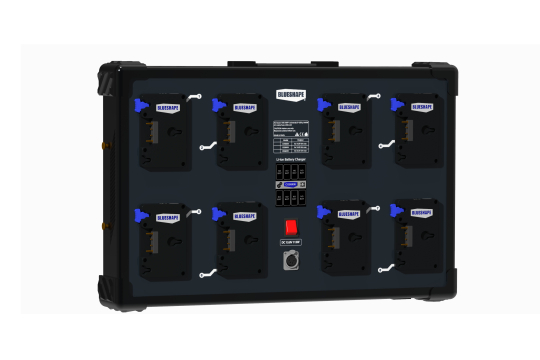

Home  Battery Chargers   3-Stud - Multiple battery chargers


Simultaneous charge


Up to 8 installable batteries

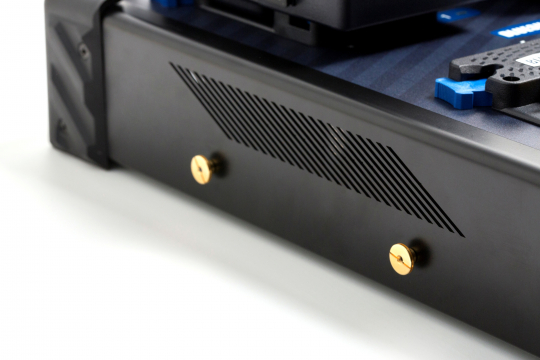

On/Off switchable fan


3.5" Touch Display


Wall mounting


  • Input: AC 100-240V 47-63Hz
  • Output:
  • 8x DC 16.8V 6A 100W/channel
  • 1x AUX DC 14.4V (nominal) 110W max
  • Simultaneous charge: all the 8 batteries are charged in parallel for maximum performance
  • Adaptive charge current: fast with large batteries, gentle with smaller
  • Universal charger: can charge any brand of 3-Stud batteries
  • ON-OFF switchable fan for quiet operation
  • 3.5" Large LCD touch screen for intuitive and detailed battery monitoring and diagnostic
  • Double LCD display to show battery digital information in real time like state of charge, charge time to full and status information
  • Data socket

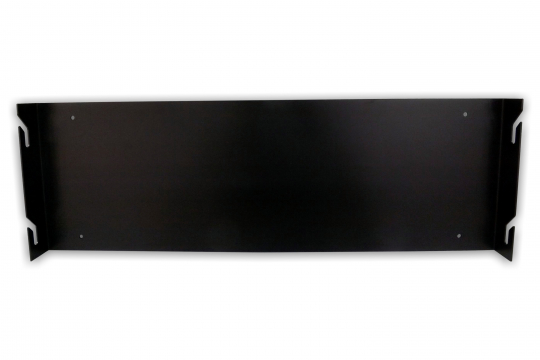

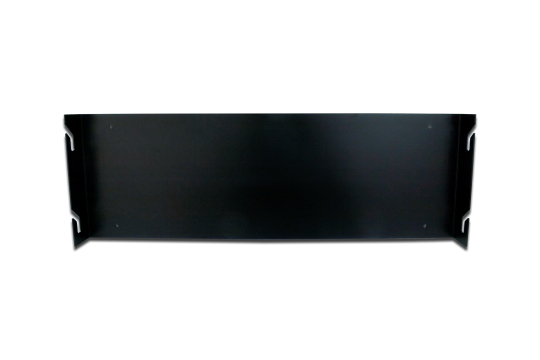

  • Provided with a bracket for easier wall installation either inside or in a production vehicle
  • Size: 620 x 410 x 110 mm (24.40" x 16.14" x 4.33")
  • Weight: 9.7Kg (21.44lbs)

Charging performance:

  • BG095HDmini 95Wh: 2h 30m
  • BG140HDmini 143Wh: 2h 30m
  • BG090 95Wh: 2h 30m
  • BG100HDplus 100Wh: 2h 30m
  • BG150 150Wh: 2h 30m
  • BG190HDplus 193Wh: 3h
  • BG290HDplus 290Wh: 4h 20m


Operating Manuals

CGS8XW operating manual
